Domani Wing Kit

Name: Domani Wing Kit
Brand: Cabrinha
SKU: K7FKKTDOM-058160
Price: 979.0 USD
Availability: OutOfStock

Performance Hydrofoil

$979.00

SKU: K7FKKTDOM-058160

Variant:

580 Front Wing + 160 Tail Wing 700 Front Wing + 160 Tail Wing 830 Front Wing + 160 Tail Wing 960 Front Wing + 160 Tail Wing 1160 Front Wing + 180 Tail Wing

Variant

Description

The Wing:

The foil of tomorrow.

Designed for riders who want to unlock more speed, control, and confidence when the conditions are firing.

The Domani is designed to maximize and transfer the energy already available in the water, excelling at managing speed, carrying momentum through turns, and allowing riders to push harder without feeling overpowered.

With an aspect ratio of 10 and an incredibly wide speed range, the Domani is the perfect blend of high-speed efficiency and intuitive handling, delivering a ride that feels both powerful and predictable.

Whether carving powerful swell, driving through turns, or linking sections with speed and precision, the Domani rewards riders who want to ride faster and push further.

Velocity = Power/Force.

*Set Includes: Cover, 2 pcs m8x45mm

The Tail Wing:

The Union stabilizer is our most efficient low drag stabilizer that comes available in 3 sizes, 160, 180 & 200. All with an aspect ratio in the region of 8.5 they allow the perfect balance of stability and response to help maximize the performance of the Union system.
The 160 offers a more loose & playful feeling. The 180 is the most versatile all-round option while the 200 offers maximum stability.

*Set Includes: Cover, 1pcs m8x20mm

Design Profile

High-speed efficiency with intuitive control for riders looking to push harder in powerful conditions.

Features

The Wing:

High-efficiency, high-aspect-ratio foil for exceptional turning, speed, and versatility
Medium-to-high aspect ratio platform for the perfect balance of efficiency and maneuverability
Modern progressive cross-section for exceptional high-end speed and glide
Modified moustache front profile for efficient lift and turn initiation
UNION connection for maximum stiffness and low drag
Modified elliptical, draft-forward outline for increased maneuverability
Premium M40 prepreg carbon construction

The Tail Wing:

Single monocoque component for minimal drag
Full prepreg carbon construction
Optimal efficiency and maneuverability

Coming Soon

Click below for first access to new product information.

Key Features

UNION CONNECTION

Maximized fuselage footprint connection for flexural rigidity and hydro dynamic efficiency. The fluid, integrated design offers a clean, modern aesthetic while improving overall efficiency.

One Foil. Endless Possibilities

The combination of speed, glide and responsive handling creates a highly versatile foil that performs across a wide range of conditions. From early take-offs and long downwind runs to carving, linking bumps and powered maneuvers, it delivers performance without compromising usability.

High Efficiency, High-Aspect

A refined high-aspect platform is engineered to deliver exceptional glide and speed with minimal drag. The efficient platform generates strong lift while maintaining a clean, fast profile, allowing you to carry speed through lulls and connect bumps with less effort.

Wide Size Range

From smaller, high-speed sizes for powered riding, larger waves and tight turns to larger sizes focused on exceptional early lift, stability and maximum glide, there’s a setup to match your style.

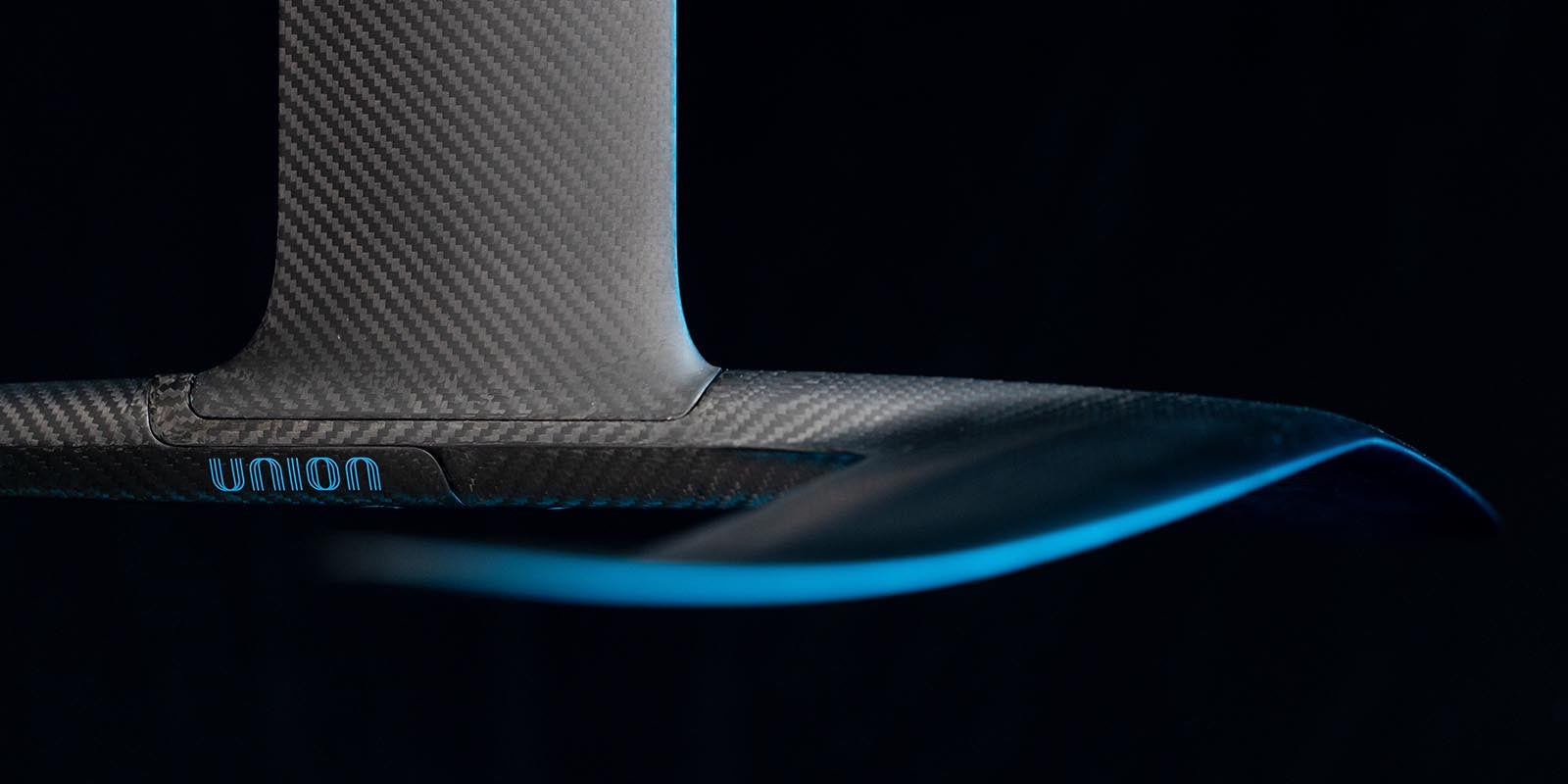

Moustache Front Profile

The distinctive, sculpted leading-edge profile is tuned to balance efficient lift with fast, intuitive turn initiation. The central section provides efficient support and predictable lift, while the progressive outer profile helps the foil roll smoothly into turns with effortless tip breaches.

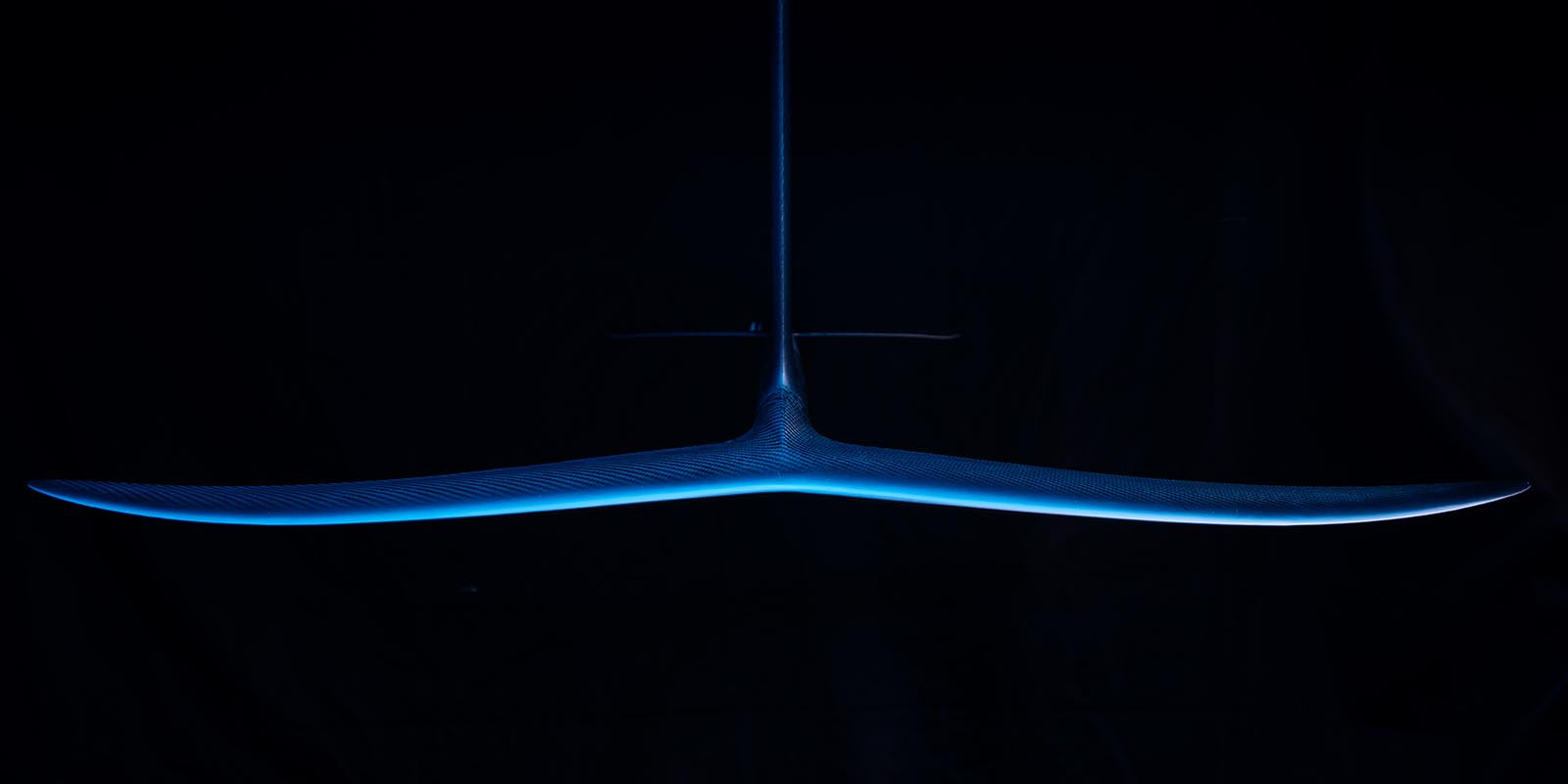

Carbon Chic

It’s all about the carbon, and the use of Premium m40 prepreg carbon construction provides not only an incredible looking product, but gives the highest level of performance.

STYLE SELECTOR

Speed Without Limits

Built for riders who want to harness the energy of the water and turn it into speed. The Domani combines high-speed efficiency, exceptional momentum, and intuitive control for confident carving and effortless connections.

Scores indicate how strongly the product is suited to each riding style, with 100% representing a core strength.

SPEED FACTOR

90%

JUMPING Core Strength

100%

LIFT FACTOR

80%

MANEUVERABILITY Core Strength

100%

PUMP & GLIDE

60%

EASE OF USE

90%

“The Domani has that perfect combination of glide and control. It accelerates smoothly, carries speed beautifully and gives you the confidence to explore longer lines without feeling like you’re fighting the foil. It’s incredibly rewarding when you start linking turns and letting the foil do the work.” ~ Titouan

Tech Specs

KIT SIZE	580 / 160	700 / 160	830 / 160	960 / 160	1160 / 180
FRONT WING SPAN (MM)	762	837	911	980	1077
FRONT WING AREA (cm²)	580	700	830	960	1160
FRONT WING ASPECT RATIO	10	10	10	10	10
FRONT WING CHORD (MM)	107	118	130	140	152
TAIL WING SPAN (MM)	370	370	370	370	390
TAIL WING ASPECT RATIO	8.6	8.6	8.6	8.6	8.4
TAIL WING CHORD (MM)	58	58	58	58	64

3 SCREW CONNECTION

Super simple 3 screw connection design lowers assembly time and improves hydro efficiency.

Prepreg High Modulus Carbon

Stunning full prepreg high modulus carbon construction

15% REDUCTION

An all new fuselage design not only reduces the projected area by 15% compared to the previous Fusion system, it also greatly increased efficiency and performance.
