Name: Union Carbon Mast
Brand: Cabrinha
SKU: K6FSCMAST-078XXX
Price: 1289.0 USD
Availability: OutOfStock

HYDROFOIL

$1,289.00

SKU: K6FSCMAST-078XXX

UNION BUILD GUIDE

Size:

78CM 84CM

Variant

Description

The UNION mast is a high modulus carbon mast offering incredible stiffness with low drag 16mm thick profile. It also offers incredible advances when deflection tested against previous generations.

The new UNION connection reduces the fuselage cross sectional area by 15%. This new outline is far more streamlined and efficient.

The mast is available in 2 sizes, each size is tailored for a specific riding style:

78cm for prone and downwind purists
84cm for all-around freestyle, freeride, and waves

Includes: Cover, 4pcs m8x30mm screw with 4 pcs Tnut board mounting hardware, 2 pcs m8x45mm, 1pcs m8x25mm, T40 Torx Torque tool.

Design Profile

Exceptional Carbon stiffness with low drag.

Features

16mm High-modulus carbon layup for exceptional stiffness and direct feedback
Monobloc construction reduces drag and improves energy transfer for better glide and higher top speed
Unidirectional pre-preg carbon maximizes stiffness while keeping weight down
Thin, aerodynamic profile cuts drag for easier early lift longer glide and higher top end
UNION connection for maximum stiffness and low drag

Coming Soon

Click below for first access to new product information.

Key Features

UNION CONNECTION

Maximized fuselage footprint connection for flexural rigidity and hydro dynamic efficiency. The fluid, integrated design offers a clean, modern aesthetic while improving overall efficiency.

VENTILATION RESISTANT DESIGN

Maintaining uninterrupted flow and control through maneuvers.

TAPERED UP SECTION

The Tapered up section maximizes stiffness while keeping the wetted section of the mast thin for minimal drag.

Style Selector

Stiffness:

Speed / Glide:

Advanced Performance:

"This mast is ROCK SOLID – the stiffness that the added 2mm adds to this whole system is astounding while still having a thin enough profile to let the high performance nature of the Union system shine. Ive never felt such a direct connection to my foil before” ~ Daniel Ware

Tech Specs

MAST SIZE	78CM	84CM
RECOMMENDED USES	Surf Foil / Downwind Foil / Wing Foil	Wing Foil / Tow Foil / Kite Foil

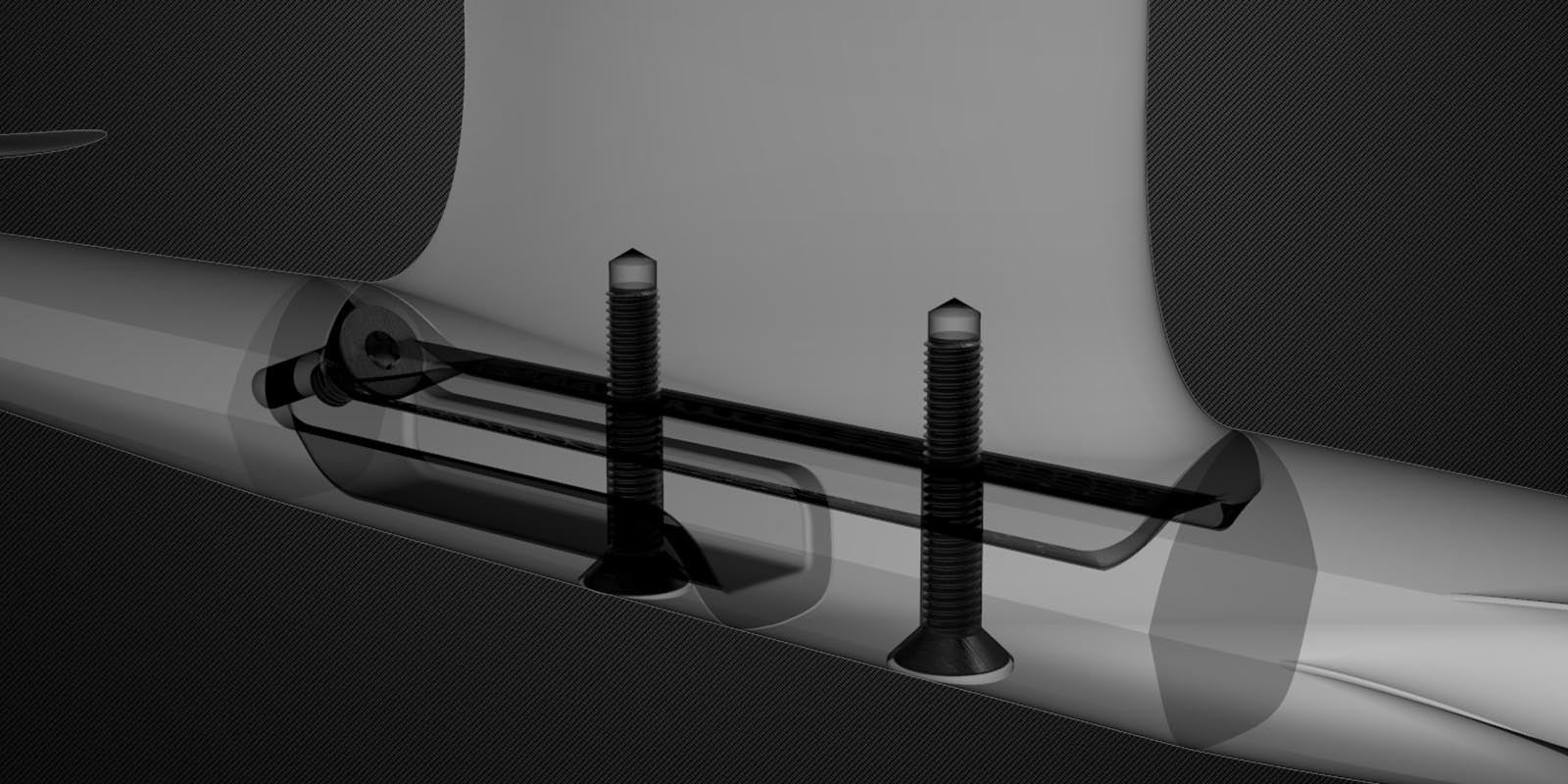

INTEGRATED INSERT

Our proprietary SS316 insert system provides an ultra-rigid, precision-aligned fuselage connection that assembles easily and maintains perfect inline geometry under load.

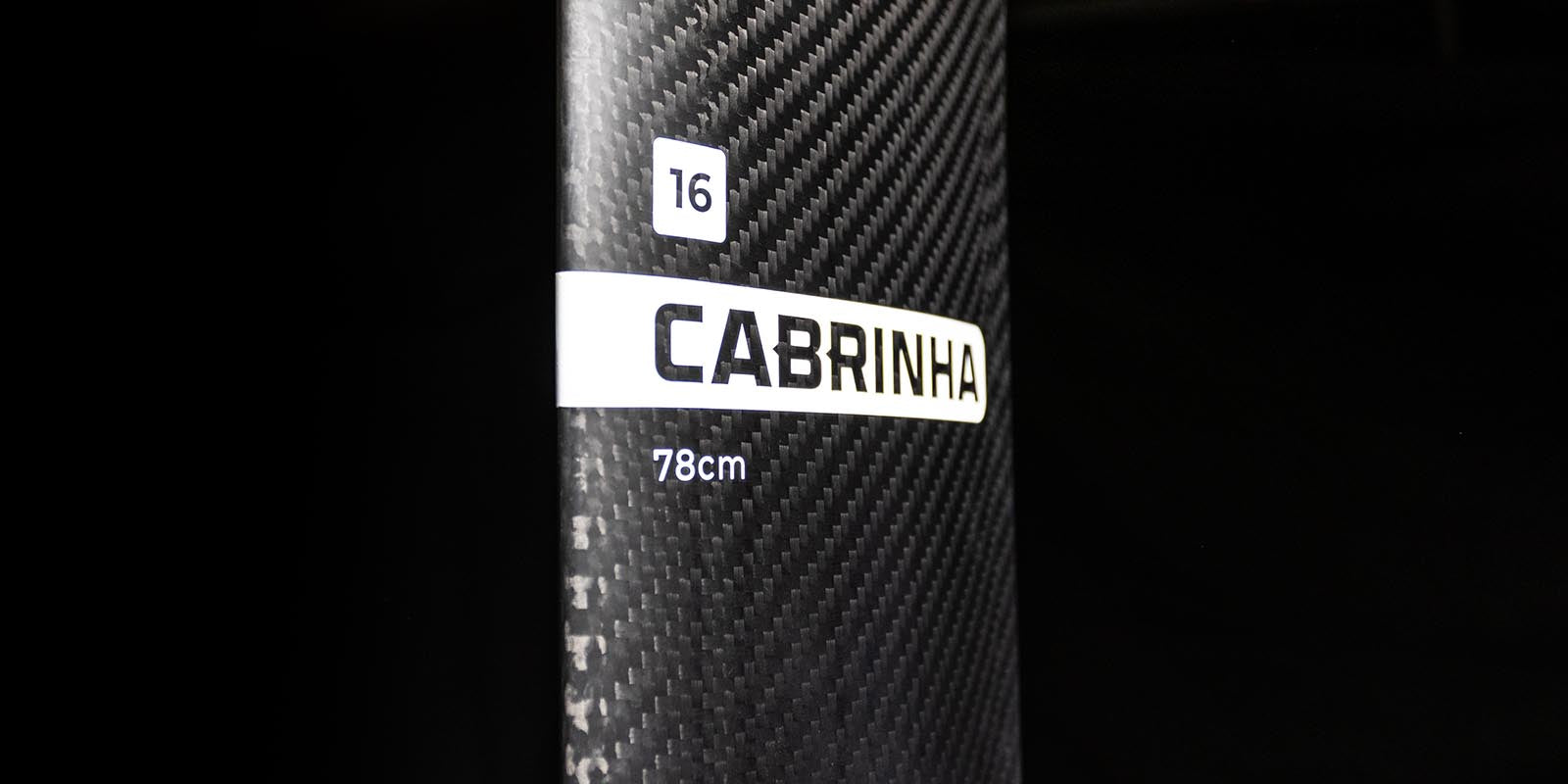

CONSTRUCTION

The highest quality prepreg high modulus carbon construction not only creates a visual masterpiece but provides the ultimate balanced between stiffness and strength.

15% REDUCTION

An all new fuselage design not only reduces the projected area by 15% compared to the previous Fusion system, it also greatly increased efficiency and performance.

3 SCREW CONNECTION

Super simple 3 screw connection design lowers assembly time and improves hydro efficiency.
